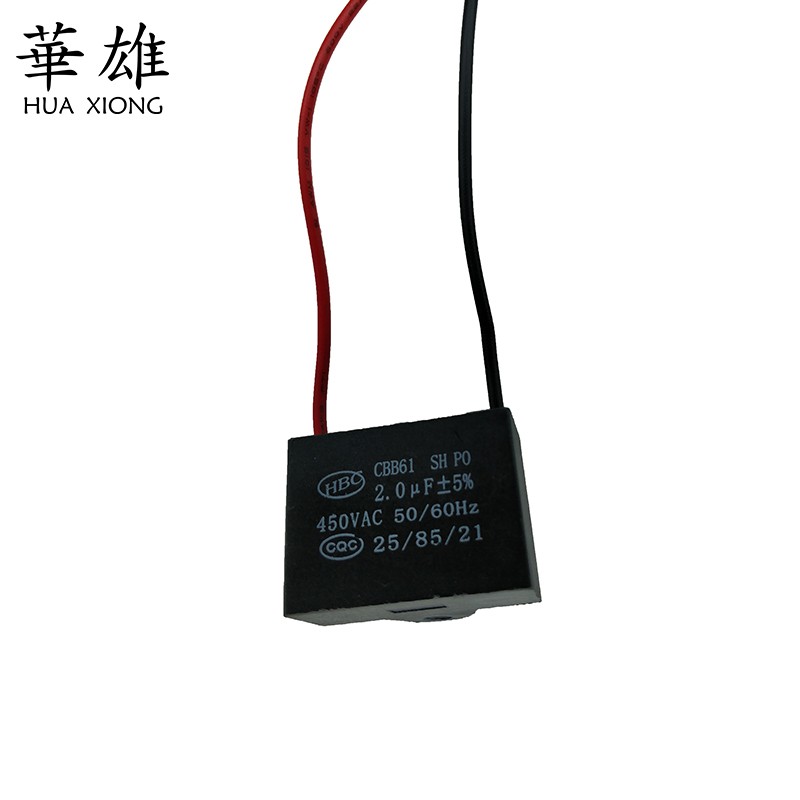

HBC 2.0uf 450V CBB61 Ceiling Fan Capacitor Polypropylene Film Motor Capacitors
Product Description
Products Show
Hot Selling Ceiling Fan 2.ouf 450v Capacitors
Product Feature
1. Widely applied to starting and running of AC single-phase motors at 50/60Hz frequency power
2.Self-healing property
3.High safety. Extremely stable performance and High reliability
4. High I.R. (insulation resistance) small size.
5. Low D.F. (dissipation factor), lower temperature rise.
Rated Voltage | 400VAC/450VAC 50/60Hz |
Class of operation | Class C |
Capacitance Range | 0.4µF～15µF |
Climatic Category | 40/85/21 |
Voltage Proof Between Terminals | 2.0UN（2S） |
Voltage Proof Between Terminals And Case | 2.0UN+1000VAC≤2000VAC（60S) |
Capacitance Tolerance | ±5% ±10% |
Dissipation Factor | ≤0.0020 ( 20℃ 100HZ) |
Insulation Resistance | ≥3000 S |
Maximum Permissible Voltage | 1.1UN |
Maximum Permissble Current | 1.3 IN |
Class of safety Protection | S0 (P0) |
Product Type
Our Company
FAQ
Q: Are you trading company or manufacturer ?
A: We are the professional factory in China.
Q: What is the material of your products?
A: The material is Metallized film for capacitors used Grade A+. We can also choose material as customers’ requirement.
Q: How can us get some samples?
A: We are honored to offer you samples. if you need!
Q: How does your factory do regarding quality control?
A: "Quality is priority. All people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9000;SGS authentication,We are the National High-Tech Enterprise.We have the professional technical personnel team,advanced equipments;Skilled production technology by fifteen years.
Q: What is the delivery time?
A: Normally,the time is 7~30days as we can;we must do our best to do it much quickly.
