MEMS Air flow sensor bipap medical care machine

  • MEMS Air flow sensor bipap medical care machine
  • MEMS Air flow sensor bipap medical care machine
  • MEMS Air flow sensor bipap medical care machine
  • MEMS Air flow sensor bipap medical care machine

MEMS Air flow sensor bipap medical care machine

    Unit Price: 50~70 USD
    Min. Order: 100 Piece/Pieces
    Packaging: Standard export packing
    Supply Ability: 3000 Piece/Pieces per Month
    Port: Any Port in China

Basic Info

Model No.: GFS131

Product Description

Air flow sensor uses the thermodynamic principle to detect flow rate of the gas medium in the flow channel, with good precision and repeatability. Temperature sensors are built-in and every one product is calibrated for temperature compensation. At the same time, it has linear analog voltage output, convenient to use.Mainly used in Intensive care ventilator or Portable ventilator.

Detail show

GFS131 MEMS sensor Air flow meter sensor bipap medical care machine

Features

1.Latest MEMS Sensor chip technology

2.High accuracy, quick response, good repeatability

3.Detection micro flow accurately

4.It is calibrated completely and temperature compensated


Specification

Model GFS131
Measuring Range 100, 150, 200, 300SLM
Min Typical Max Unit
Full Scale Output 4.34 4.50 4.66 V
Zero Output 0.45 0.5 0.55 V
Output Impedance - 1000 - Ω
Working Voltage 4.95 5.0 14.0 V
Working Current - 25 - mA
Accuracy - ±2.5 ±4 %F.S
Repeatability - ±0.5 ±1 %F.S
Output Drift - 0.12 - %/℃
Signal noise - 10 - mV(Vrms)
Resistance - 120 - Pa/60SLM
Power consumption - 125 - mW/5V
Working pressure - - 100 kPa
Response Time - 10 - ms
Working Temp -25 65
Storage Temp. -40 90

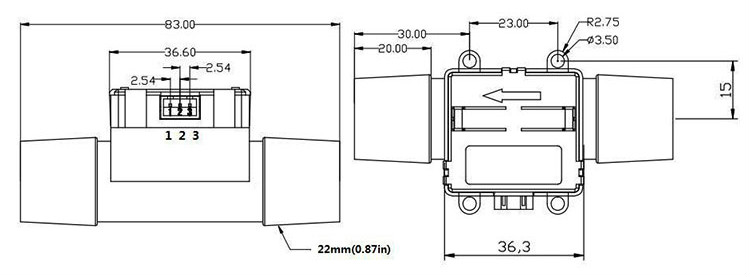

GFS131 MEMS sensor Air flow meter sensor bipap medical care machine

Pins Definition


pin Function
1(black or gray) GND
2(red) VCC
3(yellow) OUT
