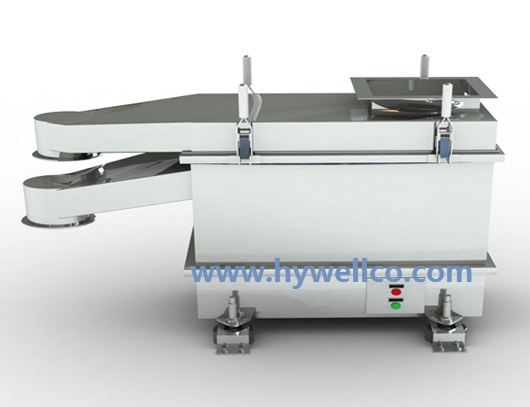

High Capacity Square Vibration Filter Machine

  • High Capacity Square Vibration Filter Machine
  • High Capacity Square Vibration Filter Machine

High Capacity Square Vibration Filter Machine

    Packaging: Wood Box
    Productivity: 30-40 Set per Year
    Brand: Hywell
    Transportation: Ocean
    Place of Origin: China
    Supply Ability: 5 Set/Sets per Month
    Certificate: ISO

Basic Info

Model No.: ZF

Product Description

High Capacity Square Vibration Filter Machine


High Capacity Square Vibration Filter Machine Characteristics:

1. High Capacity Square Vibration Filter Machine have good efficiency.

2. High Capacity Square Vibration Filter Machine reach GMP

3. High Capacity Square Vibration Filter Machine made by all stainless steel.

4. High Capacity Square Vibration Filter Machine is also Flour Filter Machine and Wheat Flour Sieve


Designed and modified by importing the advanced foreign technology and in combination with GMP standard, Amylum Powder Filter is widely used for grading and screening of industrial raw materials in such trades as pharmaceutical, chemical, foodstuff, metallurgy and electronics etc..



Main Features:
1. Highly polished inner and outer surfaces of the barrel, no dead comer, easy to discharge materials, easy to clear, no cross contamination. Confining to the requirement of GMP.
2. Control system has more choices, such as push button , HMI+PLC and so on.
3. Machine materials : AISISUS304 , AISISUS316L, and other material .
5. For the electrical component , we mainly use international brand such as ABB ,Siemens or Schneider.

6. The vibration sieve often connect with drying machine, such as vibration fluid bed dryer, fluid bed dryer and so on.

7. The vibration sieve also connect with grinding machine such 30B grinding machine to make the big size materials into small pieces.

8. High efficiency, refined design, duration, any powders and mucilage are suitable for using.
9. Easily to replace the screen, simple operation and convenience washing.
10. Never jam the hole meshwork, no powder flying, filter size of the powder between 500 mesh and 0.028 mm.
11. Discharge the impurity and coarse materials automobile and operates continuously.
12. Unique screen flame design, long duration of screen, only 3-5 to replace the screen.
13. Small volume, move easily.


High Capacity Square Vibration Filter Machine Working principle
Granule vibration screen is comprised of screen box, Vibration source and damper, vibrating frame and screen box are connected with 4-12 group soft rubber dampers fixed up and down, and the centrifugal force is generated therein, the floating amplitude is controlled by the damper, by which, material realizes a process of throw and lamination filtration downward, and therefore reaching the optimized grading and screening effect.


High Capacity Square Vibration Filter Machine Characteristic

1. Continous production, automatic grading, sieving
2. Low noise
3. Enclosed structure, without overflow of power dust

4. Fast start-up, and very stable stop

5. Small cubage, easy to install, convenient to operate and maintain.

6. The series screen with high usage rate, its screen opening can not be easy blocked, and it is easy to replace its mash.

Model capacity Sieve hole Motor power Vibration frequency Overall dimension Weight
ZF-0.3 50-300kg/h 3-150mesh 0.2kw 1400r/min 1250*660*900mm 150kg
ZF-0.5 100-450kg/h 3-150mesh 0.2kw 1400r/min 1250*660*900mm 250kg
ZF-0.8 300-750kg/h 3-150mesh 0.3kw 1400r/min 1500*800*900mm 320kg
ZF-1.2 500-1100kg/h 3-150mesh 0.5kw 1400r/min 1980*1050*1450mm 400kg
ZF-1.8 800-1600kg/h 3-150mesh 0.75kw 1400r/min 2400*1200*1500mm 600kg
ZF-2.2 1000-2500kg/h 3-150mesh 0.75kw 1400r/min 2800*1200*1600mm 800kg
